Superior surface finish and excellent geometric tolerance
Vimax Technocast is a machined investment castings exporter based in India, supplying precision-machined components to OEMs in more than 12 countries. We supply to OEMs and tier-1 manufacturers in the US, Canada, the UK, France, Germany, Italy, Spain, South Africa, Saudi Arabia, Japan, Australia, and other leading countries.
We are a trusted machined investment castings manufacturer, delivering tight tolerances as per VDG P690 D1/D2 and IS 11166:1993 Class 2 requirements. Surface roughness for finished products ranges from 6.3μm to 1.6 μm. Furthermore, we are ISO 9001: 2015, PED 2014/68/EU, and AD 2000 Merkblatt W0 certified.

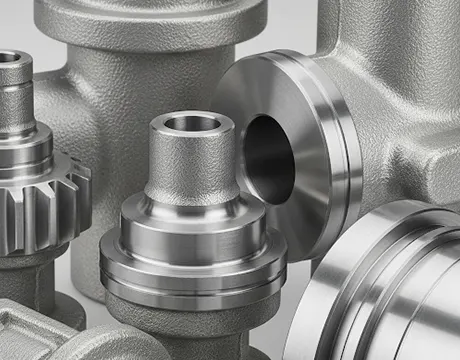

Components We Produce as a Machined Investment Castings Manufacturer
As a machined investment castings manufacturer, we have produced over 3,000 precision machined investment castings for a wide range of industries. Here’s a broad overview of the components we cast and machine.
Valve Components
for isolation, regulation, check, pressure, & special valves
- Body
- Bonnet
- Flanges
- Discs
- Actuators
Pump Components
for centrifugal, submersible, diaphragm, & metering pumps
- Housings
- Impellers
- Flanges
- Glands
- Shaft sleeves
Engine & Transmission Components
for hatchbacks, sedans, SUVs, minivans, buses, trucks, & other heavy vehicles
- Engine blocks
- Cylinder heads
- Crank case
- Crankshaft covers
- Clutch housings
Suspension & Brake Components
for hatchbacks, sedans, SUVs, minivans, buses, trucks, & other heavy vehicles
- Suspension brackets
- Strut mounts
- Steering knuckles
- Brake calipers
- ABS housings
Firearm Components
- Bolts
- Slides
- Safeties
- Triggers
- Selector levers
Missile Components
- Canards
- Fins
- Electronic housings
- Structural brackets
- Frame parts
Firefighting Components
- Valve bodies
- Swivels
- Adaptors
- Hose couplings
- Nozzle castings
Food & Beverage Components
- Mixer blades
- Impellers
- Agitators
- Rollers
- Filling nozzles
Our Machined Investment Casting Process
The following machining process ensures every machined investment casting achieves dimensional accuracy, repeatability, and superior surface finish before shipment.
Casting tree break-out and initial separation
- Extracting the 'as-cast' components from the ceramic casts via knocking.
- Visual inspection for misruns and irregularities.
- Defective pieces sent for rework or scrapped.
Extracting individual components
- Abrasive cut-off wheels or band saws cut away the gate, leaving a stub behind.
- Air blasting or using coolant to control heat and remove chippings.
- Deburring gate stubs and sharp edges.
Fettling and gate grinding
- Using pedestal and portable angle grinders to ground down gate stubs and runner fragments.
- Using belt grinders to smooth out parting line flash.
- Parts are cleaned to remove dust, scales, and debris, and deliver a fettled blank.
Planning machining allowance and setup
- Identifying and marking critical and non-critical surfaces.
- Outlining the gamut of machining operations.
- Finalizing fixtures to minimize local distortions during operations.
Primary machining operations (roughing)
- Loading the fettled blank into the required machining center.
- Rough facing for rotational parts, rough milling for complex parts, and rough drilling holes.
- In-process inspection to catch gross errors early.
Secondary machining operations (finishing)
- Final passes and milling critical flat surfaces and mating faces to achieve required dimensional tolerance and surface finish.
- Drilling rough bores to final size and tolerance, followed by precision threading.
- Broaching, honing, and other special operations as per requirement.
Quality Assurance & Testing for Machined Castings
As machined investment casting exporters in India supplying globally, we take our quality assurance commitments seriously. The following steps outline our methodology.
| Process Stage | Key Features |
|---|---|
| Heat numbers | Furnace-based unique identifiers that enable traceability. |
| Shell IDs | Cast-oriented batch-level numbers to enable quality control. |
| Part-level Identifiers | Order number- or serial number-based identifiers. |
| Stage-wise inspection | Operator- or process-based error discovery and resolution. |
| Final inspection | Compliance with metallurgical and dimensional requirements. |
Why Choose Us as Your Machined Investment Casting Exporter
Businesses across industries in 12-plus countries already trust us to meet their investment casting requirements. To date, we have delivered more than 10,000 successful orders and expanded our production by ~233%.
Here are some additional reasons to trust us with your machined investment casting needs.
DFM & rapid prototyping
Our team works off your CAD drawings to trim materials, simplify design, and run multiple iterations to provide prototypes faster.
CAD-to-part execution
Every process is carried out in-house, saving our clients the need to liaise with multiple vendors for the same project.
Modern infrastructure
State-of-the-art rainfall sanders, fluidized bed, dual induction furnaces, and more that enable precision casting at scale.
Top-tier machinery
Three- and four-axis vertical and horizontal milling centers, lathes, vertical turrets, and tapping machines with FANUC and Mitsubishi controls.
Technical capabilities
Capacity to cast 900 x 900 x 450 mm and up to 150 kg components. We deliver up to N7 surface roughness and CT 4 tolerance in line with ISO 8062 and VDG P690. Furthermore, we conduct NDT, spectrometric, ultrasonic, magnetic particle, strength, toughness, and hardness testing.
Export readiness
Freight-worthy pallet packaging with up-to-date knowledge of customs and export requirements for all major countries globally.
Sustainable manufacturing
Powered by a 1.5MW solar power plant that meets up to 60% of our energy needs and helps our clients lower their Scope 3 emissions.
Client Testimonials
“We were in the market for nozzle guide vane castings that met our stringent tolerance requirements. Vimax was able to do it for us. We now place bulk orders with them, knowing they'll deliver on time and to our specs.”
Lead Engineer
Aerospace OEM, India
“Vimax Technocast met our need for turbocharger impellers with a high degree of surface finish. They delivered as per schedule, and we greatly appreciate the transparency in the entire process.“
Procurement Manager
Automobiles OEM, Germany
Whether you are sourcing a new component or evaluating an existing design, a technical consultation is the best place to start. As machined investment castings exporters and manufacturers, we help OEMs choose the right materials, machining strategy, and production process for long-term performance. Our engineers can help you determine the right stainless steel grade, design approach, and production strategy.
Industries We Export Machined Investment Castings to
As a machined investment castings exporter and manufacturer, we supply precision-engineered components for the following industries.
Valves
Bodies, bonnets, flanges, seatings, actuator parts, and other components for gate, ball, knife gate, butterfly, cryogenic, and other valves that are roughly or finely machined.
Pumps
Investment castings from bodies to impellers and volutes for reciprocating, rotary, centrifugal, axial-flow, and submersible pumps machined to perfection.
Automobiles
Engine blocks, cylinder heads, transmission components, and brake systems for regular and heavy-duty vehicles, machined to IATF 16949 or customer standards.
Aerospace & Defense
Canards, fins, electrical housings, selector levers, safeties, bodies, and other stainless steel castings for missiles and firearms, machined to customer specifications or AS 9100 requirements.
Food Processing
Food-safe, FDA-compliant finely machined components such as actuators and agitators that resist corrosion, oxidation, and warping.
Human Implants
Finely machined, biocompatible orthopaedic implants that meet stringent tolerance and surface-roughness requirements.
Fire Fighting
Valve bodies, flanges, nozzles, and actuator components optimally machined to meet safety standards and operational requirements.
General Engineering
An array of common components and tools such as brackets, linkage arms, holders, A-frames, wrenches, and more machined to their specific requirements.
Case Study
Ball and Gate Valves
A valve original equipment manufacturer based in Saudi Arabia required Ball and Gate Valves for end use in the Oil and Gas industry. The challenge was to deliver supremely tight tolerance and excellent surface finish for the closure elements and the seating areas. We delivered to their exact requirements.
How to Choose the Right Machined Investment Casting Exporter
Choosing the right machined investment casting exporter is critical for ensuring consistent quality, on-time delivery, and long-term manufacturing success. Whether you source components domestically or internationally, evaluating technical capabilities, quality certifications, machining expertise, and export experience helps reduce project risks and total cost of ownership. Consider the following factors before selecting your manufacturing partner.
- Filter by ISO 9001:2015 certification: This is the bare minimum for a foundry that promises adequate production management and quality control.
- Narrow down by PED 2014/68/EU and AD 2000 Merkblatt W0 certification: These are necessary for any machined investment castings manufacturer exporting to the EU and serving the German market.
- Evaluate based on process transparency: Is the foundry you are considering upfront about how they undertake machining and the internal benchmarks they have? Clarity at this stage can significantly lower total cost of ownership in the long run.
- Look into their packaging options: Do they use freight-worthy packaging? Do they cover edges with rubber covers? Do they provide adequate padding? Are they aware of local waste/transport rules?
- Validate sector-specific experience and performance: Enquire into their track record for on-time delivery, experience with sector-specific alloys, and tolerance requirements. A foundry with experience in your sector can significantly de-risk your project.
FAQs
Is Vimax Technocast only a machined investment casting exporter?
No, we are an investment casting foundry that manufactures, finishes castings in-house, and exports them globally. We are not just a stockist or exporter of finished components.
What incoterms do you work with?
We work with most incoterms—from EXW to DAP. However, the incoterms are subject to order quantities and destination. For an incoterm tailored to your project requirements, please request a quote.
What materials can your machine for a proper finish?
We can machine every material that we pour with. If not, we have a robust partner network to handle the same. You get the results you desire without any additional responsibility whatsoever.
Are all metals suitable for machining?
Most metals are suitable for machining, except those that are gummy or brittle. Examples include tin and very soft tin alloys, lead and lead alloys, and gold alloys with a high degree of gold.
Share your drawings, material specifications, and compliance requirements. We’ll evaluate your application and provide a detailed quotation along with manufacturing recommendations.
