High-performance components made in India for the world
Vimax Technocast is one of the leading pump castings component exporters from India, shipping to all leading destinations. As producers and exporters, we reduce supply chain complexity, streamline exports, and reduce total cost of ownership. We work with multiple clearing agents, support FOB, FCA, and C-series Incoterms, and provide favourable payment terms that work equally well for established and fast-growing OEMs.
Get access to a large portfolio of pump components, alloys, and industry-relevant experience with Vimax Technocast.
Castings for Pump Industry
When you choose an investment casting foundry, you expect excellent quality, prompt delivery, competitive pricing, and solid technical know-how. As your trusted pump component manufacturers, we design every step of our process to deliver exactly that, with no shortcuts and no surprises.

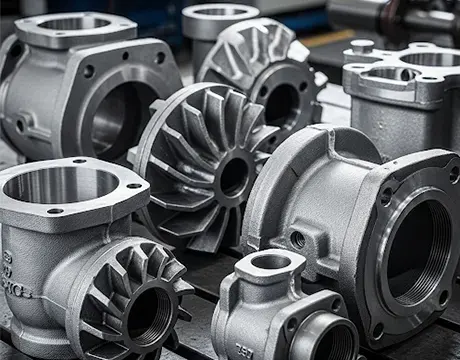

Our Range of Pump Castings
We produce and export a range of pump casting components for the following pump types.
| Pump | Pump Casting Components |
|---|---|
| Centrifugal | Pump body, Closed impeller, Volute casings, End suction casings, Bearing housings, Pump foot, Wear plate |
| Submersible & Borewell | Pump body, Screw centrifugal impeller, Single vane impeller, Chopper impeller, Mixed flow impeller, Wear ring |
| Process & Chemical | Pump body, Semi-open impeller, Wear ring |
| Positive displacement | Pump body, Helical screw impeller |
| Multistage vertical | Pump body, Discharge head, Bearing brackets, Diffusers, Discharge elbow, Pump sleeve |
| Marine | Pump body, Pump impeller, Volute casing |
| Firefighting | Pump body, Closed impeller, Volute casing, Diffuser |
| Vane | Pump body, Rotor vanes, Cam rings, Side plates |
| Peripheral | Pump casing, Impeller, Casing cover, Bearing brackets |
| Dosing & Metering | Pump body, Pump head, Diaphragm & Plunger housing |
| Food-grade & Lobe | Pump body, Lobe rotor, Rotor casing, Seal housing |
Our Range of Pump Casting Alloys & Materials
We pour with the following alloys to produce stainless steel pump components, bronze alloy pump castings, and more. Here are the details for the same.
| Alloys | Cast Grades |
|---|---|
| Carbon steel | WCB, WCC |
| Martensitic steel | CA15, CA-6NM |
| Austenitic stainless steel | CF8, CF8M, CF3, CF3M, CF8C, CF10, CK20, CH20, CN7M |
| Austenitic ferritic duplex steel | CF3MN, CD4MCu, CG6MMN, CK3MCuN |
| Duplex & Super duplex stainless steel | A890 (1A, 2A, 3A, 4A, 5A, 6A), CD3MN |
| Bronze alloys | Gunmetal, Nickel-aluminium bronze |
| Nickel-based superalloys | M-35-1, M-30-C, N-12-MV, CY40, CW12MW, CW6M |
For a complete list of all the materials and grades we pour with, please visit our materials details page.
Technical Details
Key details of our pump casting components, manufacturing equipment, and machinery.
| Particulars | Details |
|---|---|
| Process | Investment casting, Lost-wax casting |
| Shell building media | Ceramic, Stucco |
| Induction furnace | 250 kWh |
| Crucible capacity | 100 kg, 300 kg |
| T-spout ladle capacity | 35 kg, 50 kg, 80 kg |
| Casting weight range | 0.04 – 150 kg |
| Max dimension | 900 x 900 x 450 mm |
| Wall thickness | 1.5 – 5 mm |
| Surface roughness | N9–N7 (Ra 6.3–1.6 μm) |
| Machining allowance | 0.3 – 1 mm |
| Tolerance | DCTG 4–7, GCTG 3–6 |
| Surface treatment | Electropolishing, Passivation, Powder Coating, Shot blasting |
| Heat treatment | Solution annealing, Quenching, Normalizing, Tempering |
| Compliance & standards | API 610, ISO 5199, ASME B73.1 |
Our Pump Casting Manufacturing Process
At Vimax, our pump castings are produced in a contemporary facility using modern production methodology to ensure optimal near-net shape output that reduces total cost of ownership.
Wax design
Creating wax patterns using engineered dies and molten wax, which are then arranged and attached to a sprue to form a wax pattern tree.
Shell formation
Coating the wax pattern tree with ceramic slurry and then stucco, and this is done up to eight times to create optimally thick ceramic shells.
Shell heating
Inserting the shells in a steam-heated autoclave to melt the wax and leave behind a near-perfect negative cavity in the shell. The shells are then heated in a furnace to remove moisture and residual wax.
Pouring
Adding the molten alloy into the negative cavity and letting it gently cool to prevent hot corners and solidify into near-net castings.
Knocking & Fettling
Fragmenting the shell to extract the fully formed components, which are then sawed off from the sprue, sandblasted, cleaned, and have their gate stubs ground away.
Heat treatment
Inserting the components into induction furnaces to heat them, followed by air cooling to improve metallurgical and physical properties.
Machining
Marking, milling, reaming, and drilling all critical and mating surfaces to improve tolerances, fit, and finish.
Final Inspection
X-ray, Spectrometric analysis, dye-penetrant, and NDT testing; impact, hardness, toughness, and other metallurgical and dimensional checks to ensure product integrity and provide quality assurance.
Why Choose Vimax for Pump Casting Component Export Services
Vimax Technocast has more than 15 years of experience as one of the leading pump castings component exporters from India. Here’s why pump OEMs and tier-1 suppliers worldwide trust us.
Global supply
We ship pump casting components to buyers in the U.S.A., Canada, the U.K., France, Germany, Poland, the Netherlands, Italy, Spain, Saudi Arabia, the U.A.E., Japan, Australia, New Zealand, and other leading markets.
Port proximity
We are favourably situated near both Kandla and Mundra ports, ensuring favorable transit times and costs for your order. Compressed transit times directly translate into predictable dispatch dates.
Freight coordination
We work with multiple customs house agents to ensure compliance-driven, error-free export. Conversely, we can work with an agent of your choosing to ensure seamless coordination and dispatch to the port of delivery.
Payment & Incoterms
We offer a range of payment terms (LC, TT, SWIFT, Milestone split) and Incoterms (EX-W, FOB, FAS, FCA, CPT, CFR, CIF), and quote them before production starts. This helps you know the extent of cost and risk for your order, and the precise point where risk transfers.
Thorough documentation
We prepare commercial invoice, packing list, certificate of origin, final inspection results, and mill test certificates against your purchase order. Our emphasis on comprehensive paperwork ensures prompt customs clearance, quality assurance, and traceability.
Primary manufacturers
We are not an export house, but a full-fledged manufacturer of pump castings and components. Your castings are produced in an ISO 9001-certified foundry that’s also PED 2014/68/EU and AD 2000 Merkblatt W0 certified.
Scalable infrastructure
We have multiple hot pots, furnaces, pouring stations, raw material suppliers, and a trained workforce designed to keep up with the growth in your order book.
Turnkey solution
We take your requirements from ideation to production. From designing and prototyping to production at volume, machining, and inspection—everything happens in-house to help you lower supply chain spread and risk.
Sustainability
We have our own solar power plant that meets up to 60 percent of our energy requirements. Best manufacturing practices and regulatory awareness ensure we stay environmentally compliant and help you reduce Scope 3 emissions.
“Here in the European Union, we are serious about carbon emissions and conducting our business in harmony with the planet. To that effect, Vimax has been an excellent partner. Their castings meet our tolerance requirements batch after batch, but what’s best is the measures they take that help us lower our emissions as tier-1 suppliers.”
Procurement Manager
Tier-1 Supplier, Poland
Ready to Discuss Your Pump Casting Requirements?
Whether you are sourcing a new component or evaluating an existing design, a technical consultation is the best place to start.
Application of Our Pump Castings in Industries
Our pump castings are routinely used as end-products in the following industries:
- Oil & Gas: Components for multistage vertical, positive displacement, and marine pumps made from WCB, CF8M, and CD3MN to handle crude, refined crude, and saltwater operations.
- Mining: Impellers, vanes, choppers, and other components for slurry and borewell pumps made from CD4MCu, CF8M, CW6M, and A890 grades to manage abrasive slurry, mine and pit waters, froth, and aggressive chemicals.
- Chemicals & Petroleum: Components for process, positive displacement, dosing, and metering pumps made from CF8, CF3M, CW6M, and CD4MCu to handle aggressive solvents, reagents, and harsh acids.
- Paper & Pulp: Components for centrifugal, process, and positive displacement pumps made from WCB and CF8M to handle white water, black liquor, transfer stock, and bleaching chemicals.
- Wastewater: Chopper, vanes, impellers, and other components for submersible, borewell, centrifugal, and multistage pumps made from austenitic steel to handle sludge, sewerage, and other chemically demanding effluents.
- Energy: Components for multistage vertical, centrifugal, submersible, and other pumps made from martensitic and austenitic stainless steel to handle hot and cold effluents.
- Railways: Components made from WCB, CF8, and gunmetal for a range of pumps to handle diesel, coolant, lubricant, and other liquids transfer and circulation.
FAQs
What lead time do you offer?
For the first batch, lead time is usually between 2-4 weeks. Subsequent batches take less time, subject to conditions.
As pump castings component exporters, what is your MOQ?
Our MOQ varies based on component, alloy, production complexity, pump type, and port of destination. To get a tailored MOQ, please reach out to us at your convenience.
Do you support D-series Incoterms?
Our support for D-series Incoterms is limited and is directly proportional to project scope. On a regular basis, we work with the above-mentioned Incoterms, including FOB, FCA, and certain C-series Incoterms.
Do you offer third-party inspection for pump castings?
Yes, we provide third-party inspection support at the client’s request. Assurance partners are mutually agreed upon at the time of project commencement.
Do you offer support for customization?
Yes, we offer support for product customization. We have the design team to bring your concept to life, cast it in your proprietary alloy, and package it as per your requirements. For additional information, please reach out to us.
Who owns the tooling after the project ends?
The question of tooling ownership is decided during the onboarding process. If nothing is communicated, we default to storing the engineered dies on our premises for further use.
